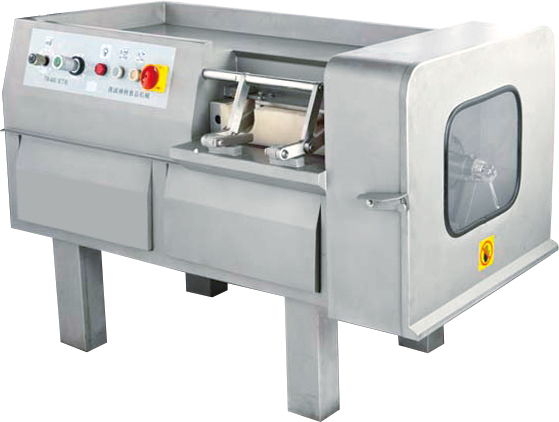

TW-RD系列自動切肉丁機

TW-RD series automatic meat cuber

用途：本機可將0～-5℃的凍肉塊、鮮肉、脂肪、莖類蔬菜等切割成丁、條、片狀，一機多用，工作效率高。廣泛應用于肉食加工中心、餐飲連鎖配送、機關高校食堂。

Use: This machine can be 0 ~ -5 DEG C, fresh meat, frozen meat blocks fat, stem vegetables cutting into small, strip, sheet, one machine with multifunction, high work efficiency. Widely used in meat processing center, restaurant chain distribution, agency College canteen.

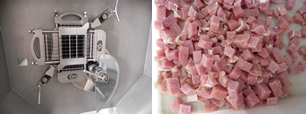

特性：本機整體采用優質不銹鋼材料加工制作，安全防護性能好，切割零件拆卸簡易，易于清洗；網格刀具，切刀可自行拆卸而調出不同尺寸，切丁標準高；切割厚度可通過液壓自行調整，以滿足不同厚度的需要；預壓設計，保證切出肉塊的均勻。

Features: This machine adopts the whole processing of high quality stainless steel materials, safety performance is good, cutting parts disassembly is simple, easy to clean; the mesh tool, cutter can disassemble and adjust different size, dicing high standard; self adjustment by hydraulic cutting thickness, in order to meet the needs of different thickness; pre press design, guarantee the cutting the meat's uniform.

主要技術參數：

The main technical parameters:

型號 外形尺寸mm    原料最大尺寸mm 切割范圍mm  產量KG/H 電機功率 機重KG

Model   mm dimensions   material maximum size mm   cutting range mm   yield KG/H   motor power machine   weight KG

TW-RD400型 1430*750*900 350*84*84 5、6、7、8、10、12、16、24、30 300-500 380V，3.0KW 320

TW-RD400        1430*750*900    350*84*84       5, 6, 7, 8, 10, 12, 16, 24, 30  300-500 380V, 3.0KW     320

TW-RD600型 1780*940*1030 550*120*120 5、6、7、8、10、12、16、24、30 600-800 380V，3.7 KW 560

TW-RD600        1780*940*1030   550*120*120     5, 6, 7, 8, 10, 12, 16, 24, 30  600-800 380V, 3.7 KW    560
